The widget lifecycle

For a widget to appear on the user's display, it must be created, managed, mapped, and realized. When a widget is no longer required, it is destroyed. These steps are described in the following section.

1. Creating a widget

The first step is to create the widget. When a widget is created, it is given a name, and its parent-child relationship is established. A new widget adopts default settings for any of its resources that are not explicitly set when the widget is created. Widget resources are data that define how a widget appears and behaves. Resources are described in Widget resources and functions.

Widget names serve several purposes:

•	Some widgets use their name to establish a default resource value. For example, shells that have titles use their name as the default title. Push button and label widgets use their name as the default labelString. Using the name in this way results in more efficient code.

•	Widget names are used as part of a widget's printable representation (using printOn:). They are also useful for identifying widgets during debugging.

•	On platforms supporting OSF/Motif as the native widget system, widget names are used in conjunction with X resource files to set initial resource values for widgets.



Tip:

If you plan to use widget names to set initial resource values through X resource files, such as .Xdefaults, then you must take care to use names which follow the X resource file naming conventions.

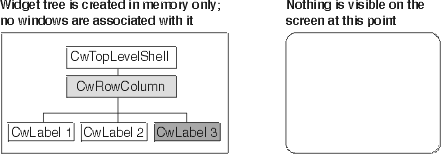

When a widget is created, it does not immediately appear on the screen. In the following illustration, a label widget named CwLabel 3 has been created, along with two others, in a widget tree. Its parent is a row-column widget named CwRowColumn. A row-column widget lays out its children horizontally, vertically, or both. The row-column's parent is a shell widget named CwTopLevelShell.

2. Managing a widget

To manage a widget, you specify that its size and position will be managed by its parent widget. This process is called geometry management. Any changes in the size or position of the parent widget will be recursively propagated to managed child widgets. The application must specify that a widget is to be managed by sending the manageChild message to the widget.

Managing or unmanaging a widget does not affect the managed state of child widgets. However, if a widget is unmanaged then neither it nor any of its children will participate in geometry management. By default a widget is not managed when it is created.

3. Mapping a widget

To map a widget, you specify that it is to appear on the display after it has been realized. Realizing a widget is described in 4. Realizing a widget. By default, a widget is mapped automatically when it is managed. This is controlled by the setting of the mappedWhenManaged widget resource, which defaults to true. Unmanaging a widget also unmaps it.

It is possible for widgets to be created, managed, and realized, but left unmapped. The widget remains invisible until it is mapped. This technique is useful for quickly displaying frequently used dialog boxes.

Widgets are mapped using the mapWidget method, and unmapped using the unmapWidget method. Mapping or unmapping a widget maps or unmaps all child widgets.

4. Realizing a widget

Until a widget is realized, it is invisible. A widget can be created, managed in the tree, and mapped, but it will not appear on the screen until it is realized. During realization, all widgets assume their initial geometry and create their visual appearance. Widgets are realized by sending the realizeWidget message to the topmost widget in the hierarchy, or shell widget. Realizing a widget realizes all of its children recursively. Widgets created, mapped, and managed as children of already realized widgets are automatically realized on creation.

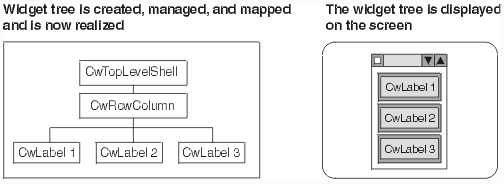

In the following example, the CwTopLevelShell widget has been realized, and the CwRowColumn has positioned its three label children.

5. Destroying a widget

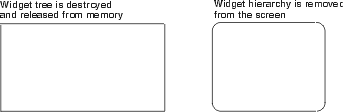

When a widget is no longer required, it is destroyed. A widget can be implicitly destroyed by the user, for example by clicking on a close box. Alternatively, a widget can be destroyed under application control by sending it the destroyWidget message. The widget is removed from the display and released from memory. Destroying a widget recursively destroys all child widgets.
