Layout of the Code Critic Results Browser

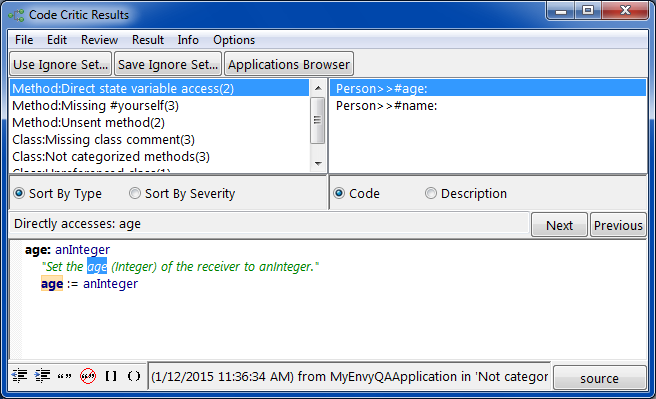

The following figure shows the Code Critic Results Browser.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\eqa\fig4.png$

Figure 4— Code Critic Results Browser.

The following table describes the elements of the Code Critic Results Browser.

Element	Description
menu bar	provides access to browsing, results management and viewing
Use Ignore Set...	ignores any results in the browser that match results in the specified file
Save Ignore Set...	saves the currently ignored results to a file
Applications Browser	Launches or brings to the front the Applications Browser associated with the browser (You can use this browser to select the same code element as in the results browser.)
left list	displays the list of reviews for which problems were found
right list	displays specific problems for a review selected in the left list
Sort By Type	sorts reviews by their type (config map, application, class, method)
Sort By Severity	sorts reviews by their severity; severity 1 is the most severe
Code	shows the source code of the code element
Description	shows the description of the selected review
label	located directly above the source code, this area displays additional information about the problem
text area	displays the text of the code element, a summary of the results or the description of a review
Next	Advances to the next problem (You can also select the method again to advance to the next problem.)
Previous	returns to the previous problem

Table 8 — Elements of the Code Critic Results Browser.
